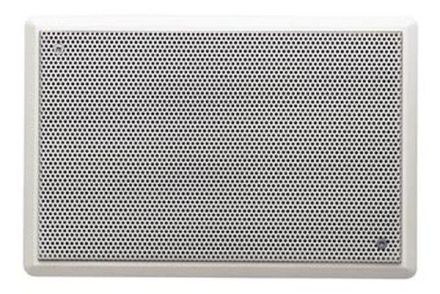

WHD 103-135-03-041-17 ZL 135 BWS AB-T3 white wall speaker

In stock
SKU: 396718
€109.41
Into a basketIn the basketGo

Overview

Ball-proof wall speaker for AB cabling. Suitable for use in small rooms where the installation of two speakers is not possible. The ZL 135 AB-T3 is equipped with a 135 mm double voice coil speaker with an additional tweeter cone and two 100V/3W transformers. It can therefore be operated via two cables on two different amplifiers at the same time. If an amplifier fails or a cable is defective, the signal is still reproduced - albeit more quietly. The connection is made via a ceramic terminal and special strands, the transformers are equipped with a thermal fuse in accordance with the British standard. The perforated sheet cover is secured with two visible screws.

Property Value
Color: other
Nominal load capacity: 6.00 W
Music load capacity: 6.00 W
Frequency: 70.00 to 23000.00 Hz
Number of ways: 1.00
Width: 260.00 mm
Height: 175.00 mm
Depth: 81.00 mm
Active system: no
Bass reflex system: no
Volume control: no
Sound projector: no
Horn speaker: no
Floorstanding speaker: no
Suitable for Ceiling mount: no
Suitable for recessed mounting: no
Portable: no
Soundbar: no
Bluetooth: no
Ethernet: no
Mobile High-Definition Link (MHL): no
USB port: no
Wi-Fi: no

Characteristics

HABZL 135 BWS AB-T3 white
ManufacturerWHD
HAN103-135-03-041-17
GTIN4043106019749
Width260.00 mm
ColorOther
Frequency70.00 to 23000.00 Hz
Suitable for ceiling mountingNo
Suitable for flush mountingNo
Height175.00 mm
Depth81.00 mm
