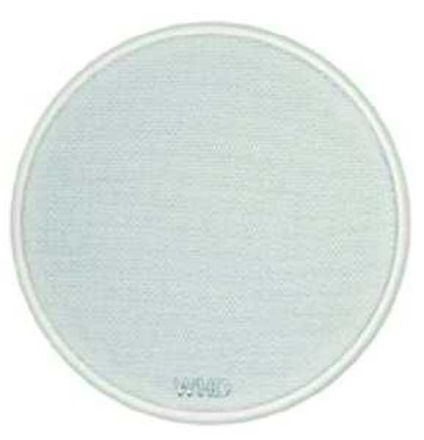

WHD 106-014-03-006-00 UP 14-T6 white ceiling speaker

In stock
SKU: 396809
€50.78
Into a basketIn the basketGo

Overview

Standard ceiling loudspeaker made of plastic with high efficiency, ideal for the reproduction of speech and background music in higher rooms (3...4 m), e.g. in department stores, foyers, ... The UP 14 is equipped with a powerful 135 mm broadband chassis with additional tweeter cone. The mounting ring is attached using four sawtooth clamps and the front ring is screwed in using a bayonet lock. The pouring pot for concrete ceilings EGT 14/2 (with plaster compensation ring) is available as an accessory.

Property Value
Color: white
Nominal load capacity: 6 W
Music load capacity: 6 W
Frequency: 60 to 23000 Hz
Number of ways: 1
Width: 196 mm
Height: 196 mm
Depth: 71 mm
Active system: no
Bass reflex system: no
Volume control: no
Sound projector: no
Horn speaker: no
Floorstanding speaker: no
Suitable for ceiling mounting: yes
Suitable for built-in installation: yes
Portable: no
Soundbar: no
Bluetooth: no
Ethernet: no
Mobile High-Definition Link (MHL): no
USB port: no
Wi-Fi: no
Diameter: 196.00 mm
Article colour: white

Characteristics

HABUP 14-T6 white
ManufacturerWHD
HAN106-014-03-006-00
GTIN4043106007302
Width196 mm
Diameter196.00 mm
ColorWhite
Frequency60 to 23000 Hz
Suitable for ceiling mountingYes
Suitable for flush mountingYes
Height196 mm
Depth71 mm
