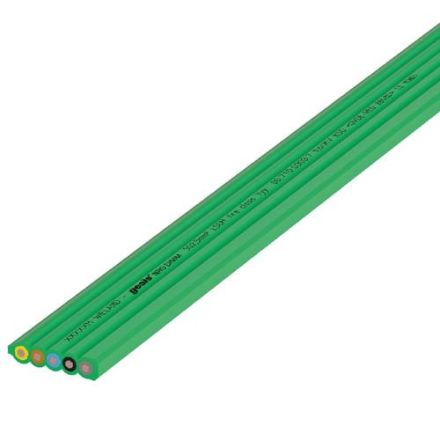

Wieland 00.712.0303.7 5G2,5qmm PVC green flat cable

In stock

SKU: 670878

Price on request

€9

€0

Overview

gesis® NRG BASIC flat cable network 5G2.5 20 A 0.6/1 kV PVC color: green

Property	Value
Number of cores:	5
Nominal conductor cross-section:	2.5 mm²
Sheath color:	green
Conductor class:	Class 6 = extra-fine wire
Material of the core insulation:	Polyvinyl chloride (PVC)
Core marking:	Color
Sheath material:	Polyvinyl chloride (PVC)
Cable width approx.:	24 mm
Cable height approx.:	6.3 mm
Fire behavior according to EN 13501-6: Class:	Eca
Fire behavior according to EN 13501-6: Smoke development:	none
Fire behavior according to EN 13501-6: Drip behavior:	none
Fire behaviour according to EN 13501-6: Acid development:	none
Min. permissible bending radius, stationary use/permanently installed:	100 mm
