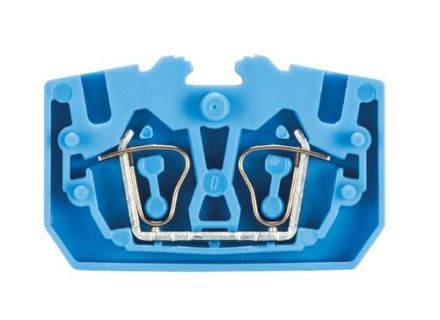

Wieland 37.703.0553.6 WKF2,5/M BLUE feed-through terminal

Wieland 37.703.0553.6 WKF2,5/M BLUE feed-through terminal

In stock

SKU: 671554

Price on request

€1.13

€0

Into a basketIn the basketGo

Overview

Feed-through terminal with tension spring connection and locking pin, nominal cross-section 2.5 mm, width 5 mm, color blue,

Property	Value
QS single-wire:	0.13 to 4.00 mm²
QS fine-wire:	0.13 to 2.50 mm²
Color:	blue
Rated voltage:	800.00 V
Levels:	1.00
Terminal points per level:	2.00
Rated current In:	24.00 A
Operating temperature:	-40.00 to 55.00 °C
Connection:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	Direct mounting
Flammability class of the insulating material according to UL94:	V2
End plate required:	yes
Material of the insulating body:	Thermoplastic
Explosion-tested version Ex e:	no
Depth:	36 mm

Characteristics

HABWKF2,5/M BLUE

Manufacturer

HAN37.703.0553.6

GTIN4015573379688

Rated voltage800.00V

Rated current In24.00 A

Operating temperatur-40.00 to 55.00 °C

Color

Mounting typeDirect mounting

Depth36 mm
