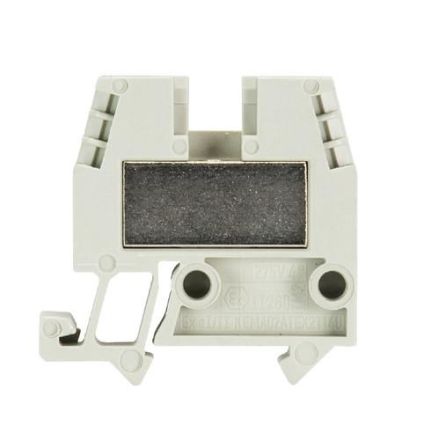

Wieland 55.504.1053.0 WKM 4 / 15/V0 feed-through terminal

Wieland 55.504.1053.0 WKM 4 / 15/V0 feed-through terminal

In stock

SKU: 671588

Price on request

€0.97

€0

Into a basketIn the basketGo

Overview

Feed-through terminal with screw connection for mounting on TS 15, nominal cross-section 4 mm, width 6 mm, color gray

Property	Value
QS single-wire:	0.50 to 6.00 mm²
QS fine-wire:	0.50 to 4.00 mm²
Color:	gray
Rated voltage:	500.00 V
Levels:	1.00
Terminal points per level:	2.00
Rated current In:	28.00 A
Operating temperature:	-40.00 to 55.00 °C
Connection:	Screw connection
Design of electrical connection 2:	Screw connection
Mounting type:	DIN rail TH15
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
Material of the insulating body:	Thermoplastic
Explosion-tested version Ex e:	yes
Depth:	32 mm

Characteristics

HABWKM 4 / 15/V0

Manufacturer

HAN55.504.1053.0

GTIN4015573478503

Rated voltage500.00V

Rated current In28.00 A

Operating temperatur-40.00 to 55.00 °C

Color

Mounting typeDIN rail TH15

Depth32 mm
