Wieland 55.504.9153.0 5550491530 WKM 4 SL/15/V0 protective conductor terminal

In stock

SKU: 668584

Price on request

€3.94

€0

Overview

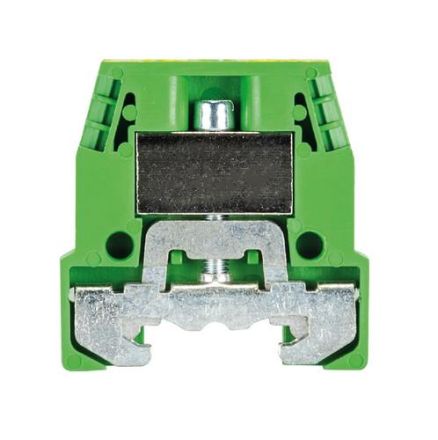

Protective conductor terminal with screw connection for mounting on TS 15, nominal cross section 4 mm, width 6 mm, color green/yellow

Property	Value
Operating temperature:	-40.00 to 55.00 °C
QS single-wire:	0.50 to 6.00 mm²
Connectable conductor cross section fine-stranded without wire end ferrule:	0.50 to 4.00 mm²
PEN function:	no
Connection:	Screw connection
Design of electrical connection 2:	Screw connection
Levels:	1.00
Terminal points per level:	2.00
Color:	green/yellow
Mounting type:	DIN rail TH15
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
Material of the insulating body:	Thermoplastic
Depth:	31.6 mm
