Wieland 56.106.0553.0 WK 6 TK/35 knife disconnect terminal

In stock

SKU: 673457

Price on request

€5.39

€0

Overview

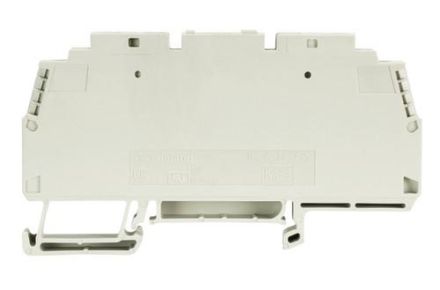

Measuring disconnect terminal with screw connection for mounting on TS 35, nominal cross section 6 mm, width 8 mm, color gray

Property	Value
QS single-wire:	0.50 to 10.00 mm²
QS fine-wire:	0.50 to 6.00 mm²
Current In:	32.00 A
Operating temperature:	-40.00 to 55.00 °C
Rated voltage:	400.00 V
Design of electrical connection 1:	Screw connection
Design of electrical connection 2:	Screw connection
Levels:	1.00
Terminal points per level:	2.00
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL94:	V0
AP required:	no
Color:	gray
Design of the longitudinal separation:	sliding
Design of the transverse separation:	other
With integrated test socket:	no
Material of the insulating body:	Thermoplastic
Depth:	87 mm
