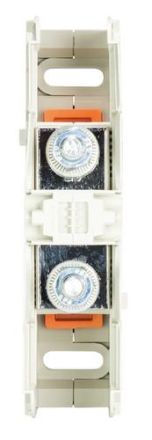

Wieland 56.170.1055.0 WRT 70 / M8 bolt terminal

In stock

SKU: 671278

Price on request

€15.63

€0

Overview

High-current terminal with bolt connection M8 for mounting on TS 35, nominal cross-section 70 mm, width 32 mm, color gray

Property	Value
QS fine-stranded:	2.50 to 95.00 mm²
Color:	gray
Rated voltage:	8.00 V
Levels:	1.00
Terminal points per level:	2.00
Rated current In:	192.00 A
Operating temperature:	-25.00 to 70.00 °C
Connection:	Bolt connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL94:	V0
Material of the insulating body:	Thermoplastic
Explosion-tested version Ex e:	no
Width:	32 mm
Height:	61 mm
Depth:	132 mm
