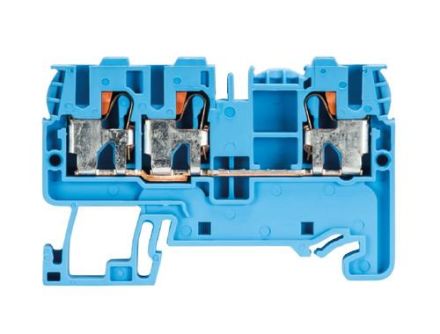

Wieland 56.203.5055.6 WTP 2.5/4 D1/2 BL feed-through terminal

In stock
SKU: 671620
€1.59
Into a basketIn the basketGo

Overview

Duo feed-through terminal with push-in connection for mounting on TS 35, nominal cross-section 2.5 and 4 mm, width 5 mm, color blue

Property Value
QS single-wire: 0.20 to 4.00 mm²
QS fine-wire: 0.20 to 4.00 mm²
QS multi-wire: 0.20 to 4.00 mm²
Color: blue
QS wire end ferrule: 0.20 to 4.00 mm²
Rated voltage: 800.00 V
Terminal points per level: 3.00
Rated current In: 32.00 A
Operating temperature: -40.00 to 55.00 °C
Connection: Plug connection
Mounting type: Top hat/G rail TH35/G32
Flammability class of the insulating material according to UL94: V0
End plate required: yes
Material of the insulating body: Thermoplastic
Depth: 60 mm

Characteristics

HABWTP 2,5/4 D1/2 BL
ManufacturerWieland
HAN56.203.5055.6
GTIN4049088180897
Rated voltage800.00V
Rated current In32.00A
Operating temperatur-40.00 to 55.00 °C
ColorBlue
Mounting typeTop hat/G-rail TH35/G32
Depth60 mm
