Wieland 56.203.9355.0 WTP 2.5/4 D1/2 PE protective conductor terminal

In stock

SKU: 673692

Price on request

€5.65

€0

Overview

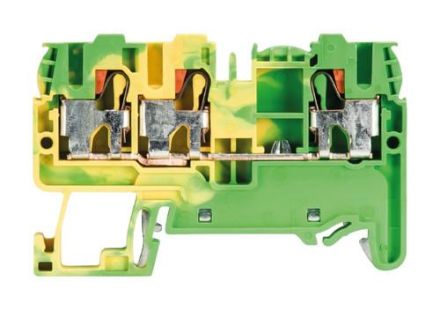

Duo protective conductor terminal with push-in connection for mounting on TS 35, nominal cross-section 2.5 and 4 mm, width 5 mm, color green/yellow

Property	Value
Operating temperature:	-40.00 to 55.00 °C
QS single-wire:	0.20 to 4.00 mm²
QS multi-wire:	0.20 to 4.00 mm²
Connectable conductor cross-section finely stranded without wire end ferrule:	0.20 to 4.00 mm²
QS wire end ferrule:	0.20 to 4.00 mm²
Connection:	Plug connection
Terminal points per level:	3.00
Color:	green/yellow
Mounting type:	Top hat/G rail TH35/G32
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
Material of the insulating body:	Thermoplastic
Depth:	60 mm
