Wieland 56.203.9753.0 WKIS 2.5 DD installation terminal

In stock

SKU: 672888

Price on request

€2.01

€0

Overview

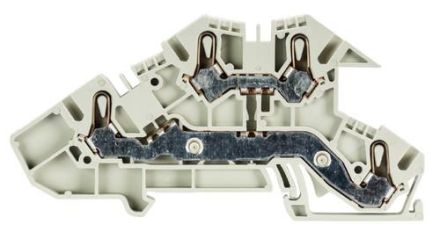

Installation terminal with plug-in spring connection for mounting on TS 35, nominal cross-section 2.5 mm, width 5 mm, color gray, for rigid conductors up to 6 mm.

Property	Value
Rated voltage:	400 V
Basic color:	gray
QS single-wire:	0.14 to 4 mm²
QS fine-wire:	0.14 to 4 mm²
Rated current In:	30 A
Connection:	Plug connection
Design of electrical connection 2:	Plug connection
Number of potentials:	2
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
With PE function:	no
With N-isolating slide:	no
N-function possible:	no
Material of the insulating body:	Thermoplastic
Depth:	100 mm
