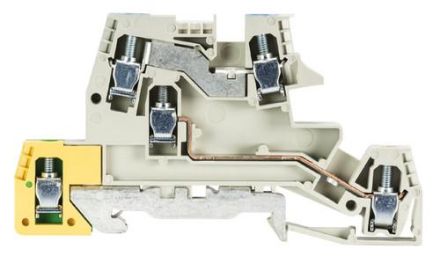

Wieland 56.404.9455.0 WKI4N-D-SL/V installation terminal

In stock

SKU: 668579

Price on request

€4.05

€0

Overview

made of polyamide 6.6, grey, 400V according to EN 60 947-7-1/DIN0611, part 1, nominal current 26 A in 5 different versions, suitable for combination with the installation terminal blocks, WKI and switchgear terminal blocks WK / WT Abbreviations NT = neutral conductor isolating terminal N = neutral conductor terminal D = phase through terminal SL = protective conductor terminal GL = glow lamp LD = light-emitting diode Three-wire installation terminals

Property	Value
Rated voltage:	400 V
Basic colour:	grey
QS single-wire:	0.5 to 6 mm²
QS fine-stranded:	0.5 to 4 mm²
Operating temperature:	-40 to 55 °C
Rated current In:	26 A
Connection:	Screw connection
Design of electrical connection 2:	Screw connection
Number of potentials:	3
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
With PE function:	yes
With N-separation slide:	no
N-function possible:	yes
Material of the insulating body:	Thermoplastic
Depth:	90 mm
