Wieland 56.404.9555.0 WKI 4 NT -D-SL /V0 installation terminal

Wieland 56.404.9555.0 WKI 4 NT -D-SL /V0 installation terminal

In stock

SKU: 668582

Price on request

€4.01

€0

Into a basketIn the basketGo

Overview

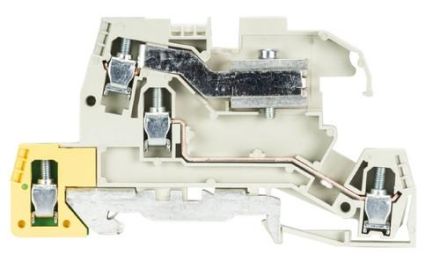

Installation terminal with screw connection for mounting on TS 35, nominal cross-section 4 mm, width 6 mm, color gray

Property	Value
Rated voltage:	400 V
Basic color:	gray
QS single-wire:	0.5 to 6 mm²
QS fine-wire:	0.5 to 4 mm²
Operating temperature:	-40 to 55 °C
Rated current In:	26 A
Connection:	Screw connection
Design of electrical connection 2:	Screw connection
Number of potentials:	3
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
With PE function:	yes
With N-separation slide:	yes
N-function possible:	no
Material of the insulating body:	Thermoplastic
Depth:	90 mm

Characteristics

HABWKI 4 NT -D-SL /V0

Manufacturer

HAN56.404.9555.0

GTIN4015573501195

Rated voltage400V

Rated current In26A

Operating temperatur-40 to 55 °C

Mounting typeDIN rail TH35

Depth90 mm
