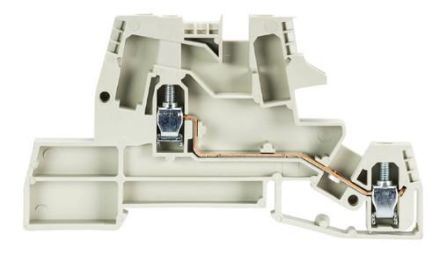

Wieland 56.404.9655.0 WKI 4 DU /V0 installation terminal

Wieland 56.404.9655.0 WKI 4 DU /V0 installation terminal

In stock

SKU: 672892

Price on request

€1.83

€0

Into a basketIn the basketGo

Overview

Installation terminal with screw connection for mounting on TS 35, nominal cross-section 4 mm, width 6 mm, color gray

Property	Value
Rated voltage:	400.00 V
Basic color:	gray
QS single-wire:	0.50 to 6.00 mm²
QS fine-wire:	0.50 to 4.00 mm²
Operating temperature:	-40.00 to 55.00 °C
Rated current In:	26.00 A
Connection:	Screw connection
Design of electrical connection 2:	Screw connection
Number of potentials:	1.00
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
With PE function:	no
With N-separation slide:	no
N-function possible:	no
Material of the insulating body:	Thermoplastic
Depth:	90 mm

Characteristics

HABWKI 4 DU /V0

Manufacturer

HAN56.404.9655.0

GTIN4015573501164

Rated voltage400.00V

Rated current In26.00 A

Operating temperatur-40.00 to 55.00 °C

Mounting typeDIN rail TH35

Depth90 mm
