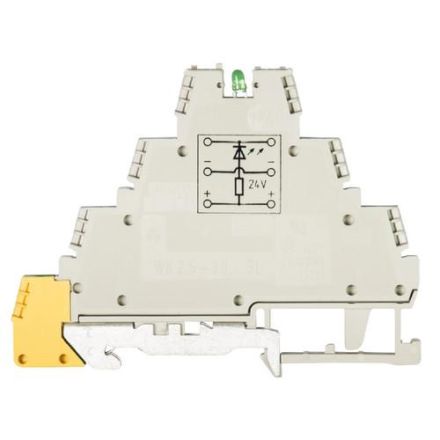

Wieland 56.503.8555.0 WK 2,5-3 D SL-PGN /V0 initiator terminal

In stock

SKU: 672874

Price on request

€21.37

€0

Overview

Initiator terminal with indicator and screw connection for mounting on TS 35, nominal cross-section 2.5 mm, width 6 mm, color gray

Property	Value
Connectable conductor cross-section, single-wire:	0.50 to 4.00 mm²
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.50 to 2.50 mm²
Rated current In:	24.00 A
Operating temperature:	-40.00 to 55.00 °C
Color:	gray
Rated voltage:	24.00 V
Number of levels:	4.00
Connection:	screw connection
Design of electrical connection 2:	screw connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL94:	V0
End plate required:	no
LED switching for:	PNP
With PE connection:	yes
With shield connection:	no
With feed-in function:	no
Number of terminal points per level:	2.00
Levels bridged internally:	yes
Can be cross-connected:	yes
Isolation function:	no
Material of the insulating body:	Thermoplastic
Depth:	90.1 mm
