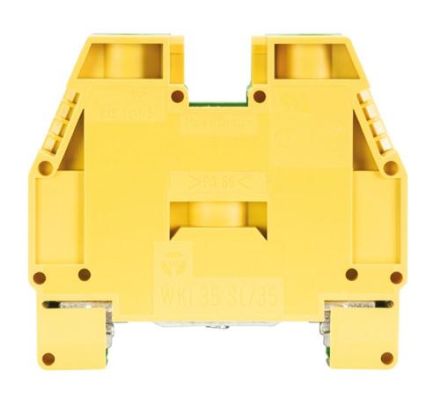

Wieland 56.535.9255.0 WKI 35 SL / 35/V0 protective conductor terminal

In stock

SKU: 673694

Price on request

€9.25

€0

Overview

Protective conductor terminal with screw connection for mounting on TS 35, nominal cross section 35 mm, width 16 mm, color green/yellow

Property	Value
Operating temperature:	-40.00 to 55.00 °C
QS stranded:	16.00 to 50.00 mm²
Connectable conductor cross section finely stranded without wire end ferrule:	16.00 to 35.00 mm²
PEN function:	no
Connection:	Screw connection
Design of electrical connection 2:	Screw connection
Levels:	1.00
Terminal points per level:	2.00
Color:	green/yellow
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL94:	V0
End plate required:	no
Material of the insulating body:	Thermoplastic
Depth:	58 mm
