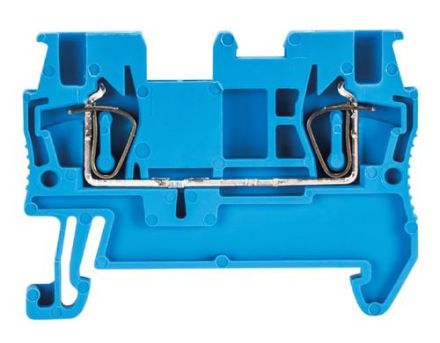

Wieland 56.702.0053.6 WKF 1,5/35 BLUE feed-through terminal

In stock
SKU: 671650
€0.85
Into a basketIn the basketGo

Overview

Feed-through terminal with tension spring connection for mounting on TS 35, nominal cross-section 1.5 mm, width 4 mm, color blue

Property Value
QS single-wire: 0.08 to 1.50 mm²
QS fine-wire: 0.08 to 1.50 mm²
Color: blue
Rated voltage: 500.00 V
Levels: 1.00
Terminal points per level: 2.00
Rated current In: 17.50 A
Operating temperature: -40.00 to 55.00 °C
Connection: Spring-loaded connection
Design of electrical connection 2: Spring-loaded connection
Mounting type: DIN rail TH35
Flammability class of the insulating material according to UL94: V0
End plate required: yes
Material of the insulating body: Thermoplastic
Explosion-tested version Ex e: yes
Depth: 48.6 mm

Characteristics

HABWKF 1,5/35 BLUE
ManufacturerWieland
HAN56.702.0053.6
GTIN4015573731769
Rated voltage500.00V
Rated current In17.50A
Operating temperatur-40.00 to 55.00 °C
ColorBlue
Mounting typeDIN rail TH35
Depth48.6 mm
