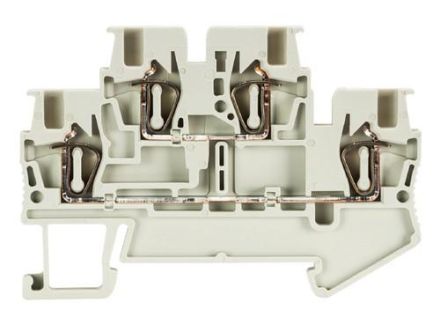

Wieland 56.702.7653.0 WKF 1,5 E2/35 multi-level terminal

Wieland 56.702.7653.0 WKF 1,5 E2/35 multi-level terminal

In stock

SKU: 671840

Price on request

€1.96

€0

Into a basketIn the basketGo

Overview

Tier terminal with tension spring connection for mounting on TS 35, nominal cross section 1.5 mm, width 4 mm, color gray

Property	Value
QS single-wire:	0.08 to 1.50 mm²
QS fine-wire:	0.08 to 1.50 mm²
Color:	gray
Rated voltage:	500.00 V
Tiers:	2.00
Terminal points per level:	2.00
Rated current In:	17.50 A
Operating temperature:	-40.00 to 55.00 °C
Connection:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
Levels bridged internally:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version Ex e:	yes
Depth:	67.6 mm

Characteristics

HABWKF1.5E2/35

Manufacturer

HAN56.702.7653.0

GTIN4015573731868

Rated voltage500.00V

Rated current In17.50A

Operating temperatur-40.00 to 55.00 °C

Color

Mounting typeDIN rail TH35

Depth67.6 mm
