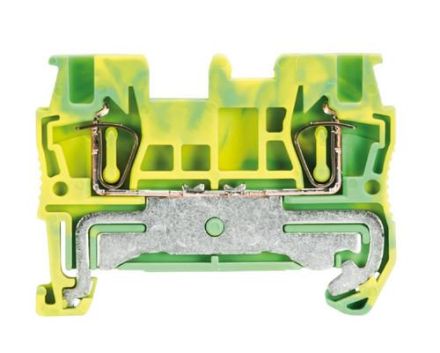

Wieland 56.702.9053.0 WKF 1,5 SL/35 protective conductor terminal

In stock
SKU: 673695
€3.62
Into a basketIn the basketGo

Overview

Protective conductor terminal with tension spring connection for mounting on TS 35, nominal cross section 1.5 mm, width 4 mm, color green/yellow

Property Value
Operating temperature: -40.00 to 55.00 °C
QS single-wire: 0.08 to 1.50 mm²
Connectable conductor cross section finely stranded without wire end ferrule: 0.08 to 1.50 mm²
PEN function: no
Connection: Spring-loaded connection
Design of electrical connection 2: Spring-loaded connection
Levels: 1.00
Terminal points per level: 2.00
Color: green/yellow
Mounting type: DIN rail TH35
Flammability class of the insulating material according to UL94: V0
End plate required: yes
Material of the insulating body: Thermoplastic
Depth: 48.6 mm

Characteristics

HABWKF 1.5 SL/35
ManufacturerWieland
HAN56.702.9053.0
GTIN4015573731776
Operating temperatur-40.00 to 55.00 °C
Mounting typeDIN rail TH35
Depth48.6 mm
