Wieland 56.702.9253.0 WKF 1,5 E2/SL/35 protective conductor terminal

In stock

SKU: 673697

Price on request

€7.68

€0

Overview

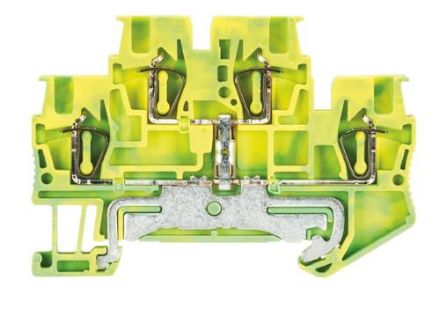

Protective conductor terminal with tension spring connection for mounting on TS 35, nominal cross section 1.5 mm, width 4 mm, color green/yellow

Property	Value
Operating temperature:	-40.00 to 55.00 °C
QS single-wire:	0.08 to 1.50 mm²
Connectable conductor cross section finely stranded without wire end ferrule:	0.08 to 1.50 mm²
PEN function:	no
Connection:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Levels:	2.00
Terminal points per level:	2.00
Color:	green/yellow
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
Material of the insulating body:	Thermoplastic
Depth:	67.6 mm
