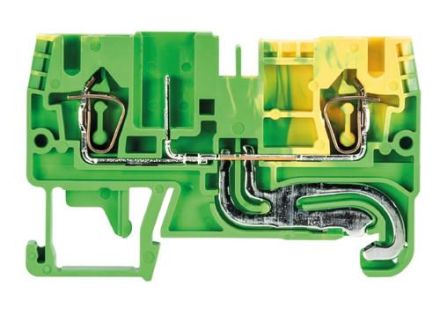

Wieland 56.703.2455.0 WKFN 2.5 F/P/F-SL protective conductor terminal

In stock

SKU: 673732

Price on request

€3.38

€0

Overview

Protective conductor terminal with 2 tension spring connections and a plug-in connection, for mounting on TS 35, connection cross-section 4 mm, width 5 mm, color green/yellow

Property	Value
Operating temperature:	-40.00 to 55.00 °C
QS single-wire:	0.20 to 4.00 mm²
Connectable conductor cross-section fine-stranded without wire end ferrule:	0.13 to 4.00 mm²
PEN function:	no
Connection:	Spring-loaded connection
Design of electrical connection 2:	Plug-in connection
Levels:	1.00
Terminal points per level:	3.00
Color:	green/yellow
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
Material of the insulating body:	Thermoplastic
Depth:	60 mm
