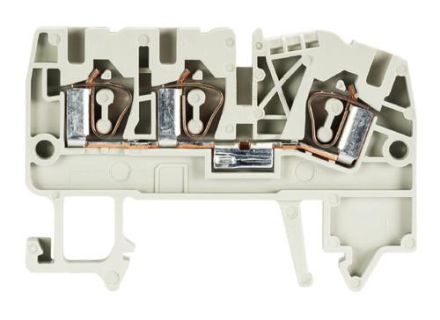

Wieland 56.703.5053.0 WKF 2.5/D1/2/35 feed-through terminal

In stock

SKU: 671679

Price on request

€1.60

€0

Overview

Feed-through terminal with tension spring connection for mounting on TS 35, nominal cross section 2.5 mm, width 5 mm, color gray

Property	Value
QS single-wire:	0.50 to 4.00 mm²
QS fine-wire:	0.13 to 2.50 mm²
Color:	gray
Rated voltage:	800.00 V
Levels:	1.00
Terminal points per level:	3.00
Rated current In:	24.00 A
Operating temperature:	-40.00 to 55.00 °C
Connection:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
Material of the insulating body:	Thermoplastic
Explosion-tested version Ex e:	yes
Depth:	60.5 mm
