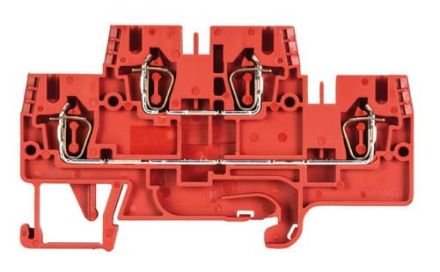

Wieland 56.703.7555.5 WKFN 2.5 E/35/...RED tier terminal

Wieland 56.703.7555.5 WKFN 2.5 E/35/...RED tier terminal

In stock

SKU: 671862

Price on request

€1.77

€0

Into a basketIn the basketGo

Overview

Tier terminal with tension spring connection for mounting on TS 35, nominal cross-section 2.5 mm, width 5 mm, color red

Property	Value
Connectable conductor cross-section, single-wire:	0.14 to 4.00 mm²
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.14 to 2.50 mm²
Rated current In:	24.00 A
Operating temperature:	-40.00 to 55.00 °C
Rated voltage:	500.00 V
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of levels:	2.00
Number of terminal points per level:	2.00
Levels bridged internally:	no
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
Color:	red
Component type:	freely configurable
Material of the insulating body:	Thermoplastic
Depth:	82.2 mm

Characteristics

HABWKFN 2.5 E/35/...RED

Manufacturer

HAN56.703.7555.5

GTIN4015573748019

Connectable conductor cross-section solid0.14 to 4.00 mm²

Rated voltage500.00V

Rated current In24.00 A

Operating temperatur-40.00 to 55.00 °C

Color

Mounting typeDIN rail TH35

Depth82.2 mm
