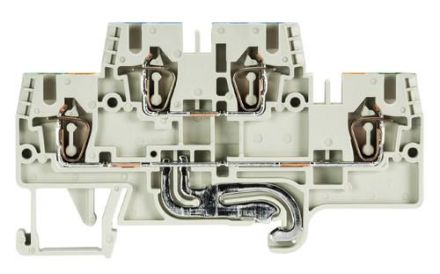

Wieland 56.703.7755.0 WKFN 2.5 E/N/SL/35 multi-level terminal

Wieland 56.703.7755.0 WKFN 2.5 E/N/SL/35 multi-level terminal

In stock

SKU: 671865

Price on request

€5.59

€0

Into a basketIn the basketGo

Overview

Tier terminal with tension spring connection for mounting on TS 35, nominal cross section 2.5 mm, width 5 mm, color gray

Property	Value
QS single-wire:	0.13 to 4.00 mm²
QS fine-wire:	0.13 to 2.50 mm²
Color:	gray
Rated voltage:	500.00 V
Tiers:	2.00
Terminal points per level:	2.00
Rated current In:	24.00 A
Operating temperature:	-40.00 to 55.00 °C
Connection:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
Levels bridged internally:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version Ex e:	no
Depth:	82.2 mm

Characteristics

HABWKFN 2.5 E/N/SL/35

Manufacturer

HAN56.703.7755.0

GTIN4015573747654

Rated voltage500.00V

Rated current In24.00 A

Operating temperatur-40.00 to 55.00 °C

Color

Mounting typeDIN rail TH35

Depth82.2 mm
