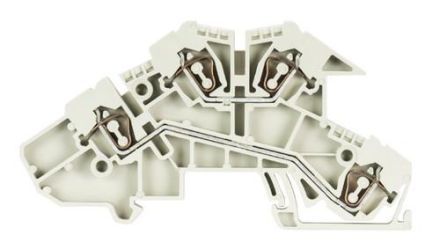

Wieland 56.703.9753.0 WKIF 2.5 DD installation terminal

Wieland 56.703.9753.0 WKIF 2.5 DD installation terminal

In stock

SKU: 670875

Price on request

€2.10

€0

Into a basketIn the basketGo

Overview

Installation terminal with tension spring connection for mounting on TS 35, nominal cross section 2.5 mm, width 5 mm, color gray

Property	Value
Rated voltage:	400.00 V
Basic color:	gray
QS single-wire:	0.14 to 4.00 mm²
QS fine-wire:	0.14 to 2.50 mm²
Operating temperature:	-40.00 to 55.00 °C
Rated current In:	24.00 A
Connection:	Spring-loaded connection
Type of electrical connection 2:	Spring-loaded connection
Number of potentials:	2.00
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
With PE function:	no
With N-separation slide:	no
N-function possible:	no
Material of the insulating body:	Thermoplastic
Depth:	95 mm

Characteristics

HABWKIF 2.5 DD

Manufacturer

HAN56.703.9753.0

GTIN4015573564442

Rated voltage400.00V

Rated current In24.00 A

Operating temperatur-40.00 to 55.00 °C

Mounting typeDIN rail TH35

Depth95 mm
