Wieland 56.704.0053.0 WKF 4 / 35 feed-through terminal

In stock

SKU: 671682

Price on request

€1.09

€0

Overview

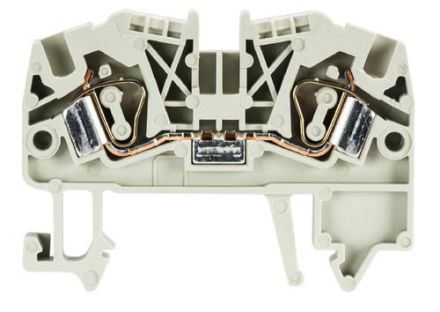

Feed-through terminal with tension spring connection for mounting on TS 35, nominal cross-section 4 mm, width 6 mm, color gray

Property	Value
QS single-wire:	0.13 to 6 mm²
QS fine-wire:	0.13 to 4 mm²
Color:	gray
Rated voltage:	800 V
Levels:	1
Terminal points per level:	2
Rated current In:	32 A
Connection:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
Material of the insulating body:	Thermoplastic
Explosion-tested version Ex e:	yes
Depth:	57 mm
