Wieland 56.704.4155.0 WKFN 4 FSI fuse terminal

In stock

SKU: 673749

Price on request

€6.72

€0

Overview

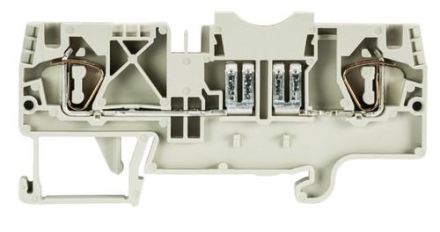

Fuse terminal with tension spring connection for vehicle fuses and mounting on TS 35, nominal cross section 4 mm, width 6 mm, color gray

Property	Value
QS single-wire:	0.13 to 6.00 mm²
QS fine-wire:	0.13 to 4.00 mm²
Operating temperature:	-40.00 to 55.00 °C
Design of the fuse insert:	Flat fuse
Design of the Fuse holder:	plug-in
Type of display element for the defect display:	without
Rated voltage:	400.00 V
Design of electrical connection 1:	spring-loaded connection
Design of electrical connection 2:	spring-loaded connection
Number of levels:	1.00
Mounting type:	top hat rail TH35
Color:	gray
End plate required:	yes
Flammability class of the insulating material according to UL94:	V0
Material of the insulating body:	Thermoplastic
Depth:	82.2 mm
