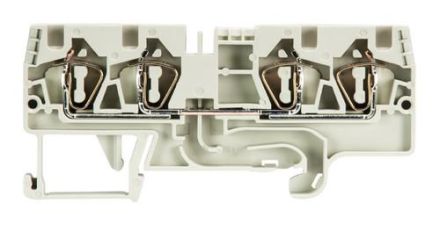

Wieland 56.704.5155.0 WKFN 4 D2/2/35 feed-through terminal

In stock

SKU: 671689

Price on request

€1.44

€0

Overview

Feed-through terminal with tension spring connection for mounting on TS 35, nominal cross-section 4 mm, width 6 mm, color gray

Property	Value
QS single-wire:	0.13 to 6.00 mm²
QS fine-wire:	0.13 to 4.00 mm²
Color:	gray
Rated voltage:	800.00 V
Levels:	1.00
Terminal points per level:	4.00
Rated current In:	32.00 A
Operating temperature:	-40.00 to 55.00 °C
Connection:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
Material of the insulating body:	Thermoplastic
Explosion-tested version Ex e:	yes
Depth:	82.2 mm
