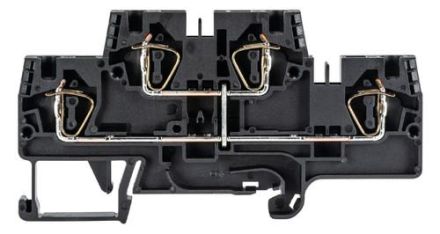

Wieland 56.704.6955.1 WKFN 4 E/VB/35 multi-level terminal

Wieland 56.704.6955.1 WKFN 4 E/VB/35 multi-level terminal

In stock

SKU: 671873

Price on request

€4.06

€0

Into a basketIn the basketGo

Overview

Tier terminal with tension spring connection for mounting on TS 35, nominal cross section 4 mm, width 6 mm, color black

Property	Value
QS single-wire:	0.13 to 6.00 mm²
QS fine-wire:	0.13 to 4.00 mm²
Color:	black
Rated voltage:	500.00 V
Tiers:	2.00
Terminal points per level:	2.00
Rated current In:	32.00 A
Operating temperature:	-40.00 to 55.00 °C
Connection:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
Internal bridged levels:	yes
Material of the insulating body:	Thermoplastic
Explosion-tested version Ex e:	yes
Depth:	90.1 mm

Characteristics

HABWKFN 4 E/VB/35

Manufacturer

HAN56.704.6955.1

GTIN4015573767164

Rated voltage500.00V

Rated current In32.00A

Operating temperatur-40.00 to 55.00 °C

Color

Mounting typeDIN rail TH35

Depth90.1 mm
