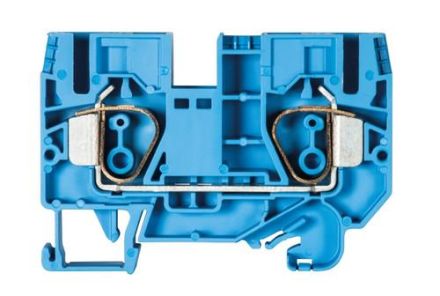

Wieland 56.710.0055.6 WKFN 10/35 BLUE feed-through terminal

In stock

SKU: 671699

Price on request

€2.54

€0

Overview

Feed-through terminal with tension spring connection for mounting on TS 35, nominal cross-section 10 mm, width 10 mm, color blue

Property	Value
QS single-wire:	1.50 to 10.00 mm²
QS fine-wire:	0.20 to 10.00 mm²
QS multi-wire:	16.00 mm²
Color:	blue
Rated voltage:	800.00 V
Levels:	1.00
Terminal points per level:	2.00
Rated current In:	57.00 A
Operating temperature:	-40.00 to 55.00 °C
Connection:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	Top hat/G rail TH35/G32
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
Material of the insulating body:	Thermoplastic
Explosion-tested version Ex e:	no
Depth:	72.5 mm
