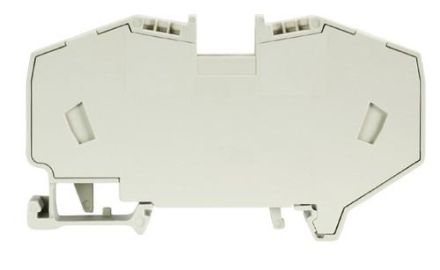

Wieland 56.716.0053.0 WKF 16/35 feed-through terminal

Wieland 56.716.0053.0 WKF 16/35 feed-through terminal

In stock

SKU: 671702

Price on request

€3.91

€0

Into a basketIn the basketGo

Overview

Feed-through terminal with tension spring connection for mounting on TS 35, nominal cross-section 16 mm, width 12 mm, color gray

Property	Value
QS single-wire:	4.00 to 10.00 mm²
QS fine-wire:	4.00 to 16.00 mm²
QS multi-wire:	16.00 mm²
Color:	gray
Rated voltage:	800.00 V
Levels:	1.00
Terminal points per level:	2.00
Rated current In:	76.00 A
Operating temperature:	-40.00 to 55.00 °C
Connection:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL94:	V0
End plate required:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version Ex e:	yes
Depth:	82 mm

Characteristics

HABWKF16/35

Manufacturer

HAN56.716.0053.0

GTIN4015573501652

Rated voltage800.00V

Rated current In76.00 A

Operating temperatur-40.00 to 55.00 °C

Color

Mounting typeDIN rail TH35

Depth82 mm
