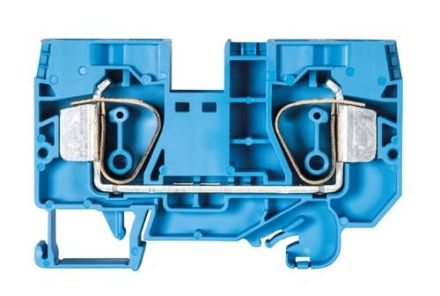

Wieland 56.716.0055.6 WKFN 16/35 BLUE feed-through terminal

In stock
SKU: 671705
€3.38
Into a basketIn the basketGo

Overview

Feed-through terminal with tension spring connection for mounting on TS 35, nominal cross-section 16 mm, width 12 mm, color blue

Property Value
QS single-wire: 0.20 to 10.00 mm²
QS fine-wire: 0.20 to 16.00 mm²
QS multi-wire: 16.00 to 25.00 mm²
Color: blue
Rated voltage: 800.00 V
Levels: 1.00
Terminal points per level: 2.00
Rated current In: 76.00 A
Operating temperature: -40.00 to 55.00 °C
Connection: Spring-loaded connection
Design of electrical connection 2: Spring-loaded connection
Mounting type: Top hat/G rail TH35/G32
Flammability class of the insulating material according to UL94: V0
End plate required: yes
Material of the insulating body: Thermoplastic
Explosion-tested version Ex e: no
Depth: 79.1 mm

Characteristics

HABWKFN 16/35 BLUE
ManufacturerWieland
HAN56.716.0055.6
GTIN4015573906457
Rated voltage800.00V
Rated current In76.00 A
Operating temperatur-40.00 to 55.00 °C
ColorBlue
Mounting typeTop hat/G-rail TH35/G32
Depth79.1 mm
Wieland 56.716.0055.6 WKFN 16/35 BLUE feed-through terminal
Wieland 56.716.0055.6 WKFN 16/35 BLUE feed-through terminal
€3.38
Into a basketIn the basketGo
