Wieland 56.716.9053.0 WKF 16SL/35 protective conductor terminal

In stock

SKU: 673713

Price on request

€5.74

€0

Overview

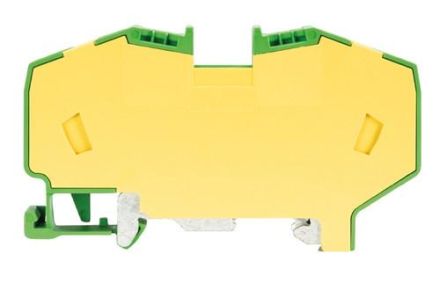

Protective conductor terminal with tension spring connection for mounting on TS 35, nominal cross section 16 mm, width 12 mm, color green/yellow

Property	Value
Operating temperature:	-40.00 to 55.00 °C
QS single-wire:	4.00 to 10.00 mm²
QS multi-wire:	16.00 mm²
Connectable conductor cross section, finely stranded without wire end ferrule:	4.00 to 16.00 mm²
PEN function:	no
Connection:	spring-loaded connection
Design of electrical connection 2:	spring-loaded connection
Levels:	1.00
Terminal points per level:	2.00
Color:	green/yellow
Mounting type:	top hat rail TH35
Flammability class of the insulating material according to UL94:	V0
End plate required:	no
Material of the insulating body:	Thermoplastic
Depth:	82 mm
