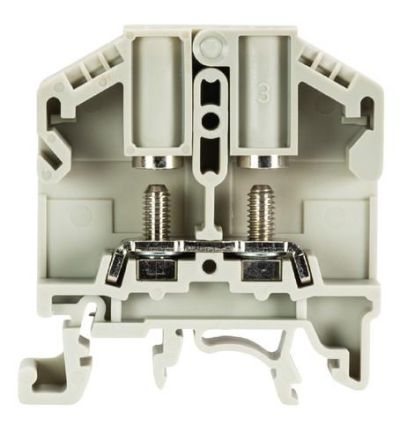

Wieland 57.106.1155.0 WRT 6 bolt terminal

In stock

SKU: 671282

Price on request

€5.41

€0

Overview

Through terminal with bolt connection for mounting on TS 35, nominal cross section 6 mm, width 11 mm, color gray,

Property	Value
QS fine-stranded:	1.5 to 6 mm²
QS multi-stranded:	1.5 to 6 mm²
Color:	gray
Rated voltage:	1000 V
Levels:	1
Terminal points per level:	2
Rated current In:	41 A
Operating temperature:	-40 to 55 °C
Connection:	Bolt connection
Design of electrical connection 2:	Bolt connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL94:	V2
End plate required:	yes
Material of the insulating body:	Thermoplastic
Depth:	46 mm
