Wieland 57.404.7055.0 WK 4E/U /V0 multi-level terminal

Wieland 57.404.7055.0 WK 4E/U /V0 multi-level terminal

In stock

SKU: 670912

Price on request

€5.30

€0

Into a basketIn the basketGo

Overview

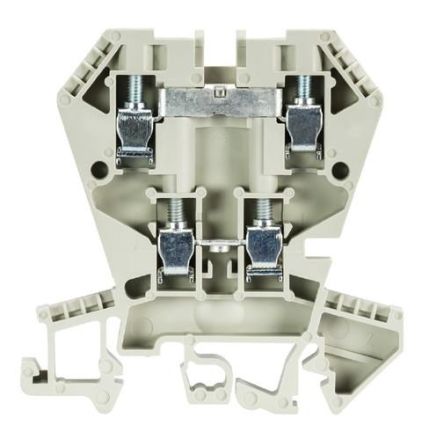

Tier terminal with screw connection for mounting on TS 35 and TS 32, nominal cross section 4 mm, width 6 mm, color gray

Property	Value
QS single-wire:	0.50 to 4.00 mm²
QS fine-wire:	0.50 to 4.00 mm²
Color:	gray
Rated voltage:	400.00 V
Tiers:	2.00
Terminal points per level:	2.00
Rated current In:	32.00 A
Operating temperature:	-40.00 to 55.00 °C
Connection:	Screw connection
Design of electrical connection 2:	Screw connection
Mounting type:	Top hat/G rail TH35/G32
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
Internal bridged levels:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version Ex e:	no
Depth:	61.6 mm

Characteristics

HABWK 4E/U /V0

Manufacturer

HAN57.404.7055.0

GTIN4015573527362

Rated voltage400.00V

Rated current In32.00A

Operating temperatur-40.00 to 55.00 °C

Color

Mounting typeTop hat/G-rail TH35/G32

Depth61.6 mm
