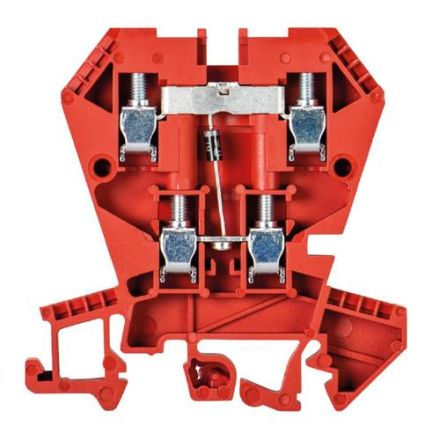

Wieland 57.404.8255.5 WK 4 E / U GO/V0 multi-level terminal

Wieland 57.404.8255.5 WK 4 E / U GO/V0 multi-level terminal

In stock

SKU: 671891

Price on request

€6.65

€0

Into a basketIn the basketGo

Overview

Functional terminal with diode circuit and screw connection for mounting on TS 35 and TS 32, nominal cross-section 4 mm, width 6 mm, color red

Property	Value
Connectable conductor cross-section, single-wire:	0.50 to 4.00 mm²
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.50 to 4.00 mm²
Rated current In:	1.00 A
Operating temperature:	-40.00 to 55.00 °C
Rated voltage:	400.00 V
Design of electrical connection 1:	Screw connection
Design of electrical connection 2:	Screw connection
Number of levels:	2.00
Number of terminal points per level:	2.00
Levels bridged internally:	yes
Mounting type:	H-rail/G-rail TH35/G32
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
Color:	red
Component type:	diode
Material of the insulating body:	thermoplastic
Depth:	61.6 mm

Characteristics

HABWK 4 E / U GO/V0

Manufacturer

HAN57.404.8255.5

GTIN4015573575523

Connectable conductor cross-section solid0.50 to 4.00 mm²

Rated voltage400.00V

Rated current In1.00A

Operating temperatur-40.00 to 55.00 °C

Color

Mounting typeTop hat/G-rail TH35/G32

Depth61.6 mm

Wieland 57.404.8255.5 WK 4 E / U GO/V0 multi-level terminal

Wieland 57.404.8255.5 WK 4 E / U GO/V0 multi-level terminal

Price on request

€6.65

€0

Into a basketIn the basketGo
