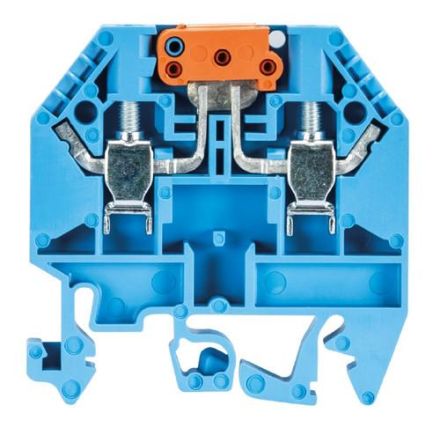

Wieland 57.504.2055.6 WK 4 TKM/U BL /V0 knife disconnect terminal

In stock

SKU: 673445

Price on request

€3.99

€0

Overview

Knife disconnect terminal with screw connection for mounting on TS 35 and TS 32, nominal cross section 4 mm, width 6 mm, color blue

Property	Value
QS single-wire:	0.50 to 6.00 mm²
QS fine-wire:	0.50 to 4.00 mm²
Current In:	20.00 A
Operating temperature:	-40.00 to 55.00 °C
Rated voltage:	800.00 V
Design of electrical connection 1:	Screw connection
Design of electrical connection 2:	Screw connection
Levels:	1.00
Terminal points per level:	2.00
Mounting type:	Top hat/G rail TH35/G32
Flammability class of the insulating material according to UL94:	V0
AP required:	yes
Color:	blue
Design of the longitudinal separation:	pivoting
Design of the transverse separation:	without
With integrated test socket:	no
Material of the insulating body:	Thermoplastic
Depth:	48 mm
