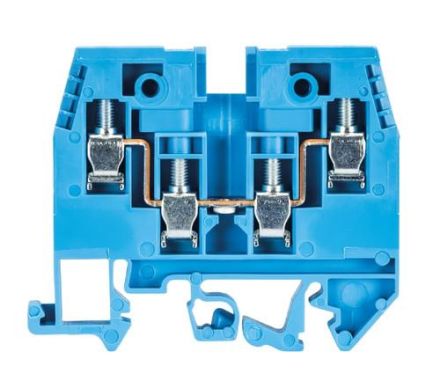

Wieland 57.504.5155.6 WK 4/D2/2U BL/V0 feed-through terminal

In stock

SKU: 671552

Price on request

€2.19

€0

Overview

Duo feed-through terminal with screw connection for mounting on TS 35 and TS 32, nominal cross-section 4 mm, width 6 mm, color blue

Property	Value
QS single-wire:	0.50 to 6.00 mm²
QS fine-wire:	0.50 to 4.00 mm²
Color:	blue
Rated voltage:	500.00 V
Levels:	1.00
Terminal points per level:	4.00
Rated current In:	30.00 A
Operating temperature:	-25.00 to 70.00 °C
Connection:	Screw connection
Design of electrical connection 2:	Screw connection
Mounting type:	Top hat/G rail TH35/G32
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
Material of the insulating body:	Thermoplastic
Explosion-tested version Ex e:	no
Depth:	60 mm
