Wieland 57.504.8155.0 WKN 4ETK/U/V0 N-isolating terminal

In stock

SKU: 668683

Price on request

€2.47

€0

Overview

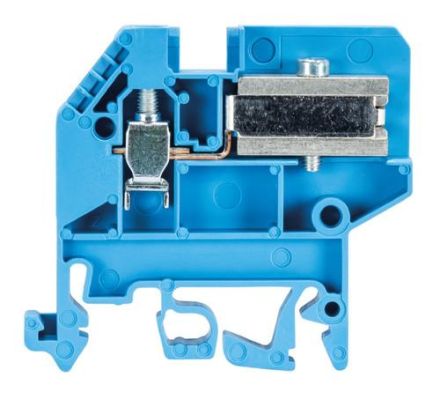

Neutral conductor isolating terminal with screw connection for mounting on TS 35 and TS 32, nominal cross section 4 mm, width 6 mm, color blue

Property	Value
Operating temperature:	-40 to 55 °C
Color:	blue
QS single-wire:	0.5 to 6 mm²
QS fine-wire:	4.0 mm²
Rated current In:	25 A
Rated voltage:	400 V
Number of terminal points:	2
Mounting type:	Top hat/G rail TH35/G32
Connection plate required:	yes
Suitable for N busbar:	3x10 mm
Flammability class of the insulating material according to UL94:	V0
Material of the insulating body:	Thermoplastic
Depth:	53.5 mm
Article colour:	blue
