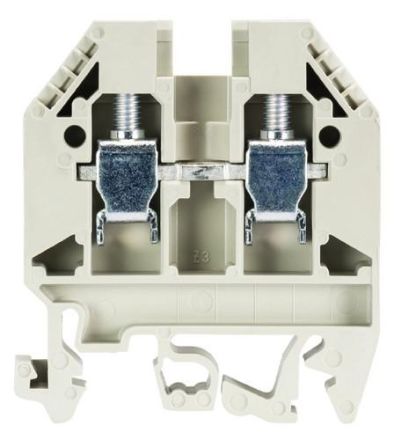

Wieland 57.506.0055.0 WK 6 / U /V0 terminal block

In stock

SKU: 668597

Price on request

€1.63

€0

Overview

Through terminal with screw connection for mounting on TS 35 and TS 32, nominal cross section 6 mm, width 8 mm, color gray

Property	Value
QS single-wire:	0.5 to 10 mm²
QS fine-wire:	0.5 to 6 mm²
Color:	gray
Rated voltage:	1000 V
Levels:	1
Terminal points each Floor:	2
Rated current In:	41 A
Operating temperature:	-40 to 55 °C
Connection:	Screw connection
Design of electrical connection 2:	Screw connection
Mounting type:	Top hat/G rail TH35/G32
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
Material of the insulating body:	Thermoplastic
Explosion-tested version Ex e:	yes
Depth:	48 mm
