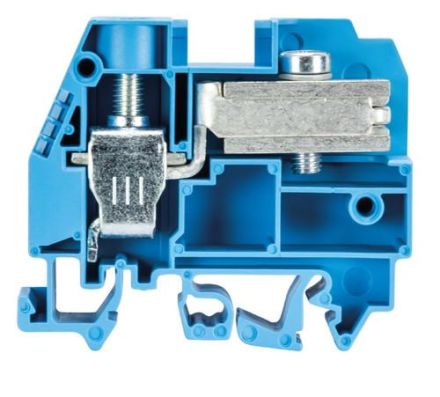

Wieland 57.516.8255.0 WKI 16 ETK/U/V0 N-isolating terminal

In stock

SKU: 673521

Price on request

€5.03

€0

Overview

Neutral conductor isolating terminal with screw connection for mounting on TS 35 and TS 32, nominal cross section 16 mm, width 12 mm, color blue

Property	Value
Operating temperature:	-40.00 to 55.00 °C
Color:	blue
QS single-wire:	1.00 to 10.00 mm²
QS fine-wire:	1.00 to 16.00 mm²
QS stranded:	16.00 to 25.00 mm²
Rated current In:	62.00 A
Rated voltage:	400.00 V
Mounting type:	Top hat/G rail TH35/G32
Connection plate required:	yes
Suitable for N busbar:	3x10 mm
Flammability class of the insulating material according to UL94:	V0
Material of the insulating body:	Thermoplastic
Depth:	58 mm
