Wieland 57.570.9855.0 WKN 70 3D/N/SL/U/V0 feed-in set

In stock

SKU: 671817

Price on request

€113.30

€0

Overview

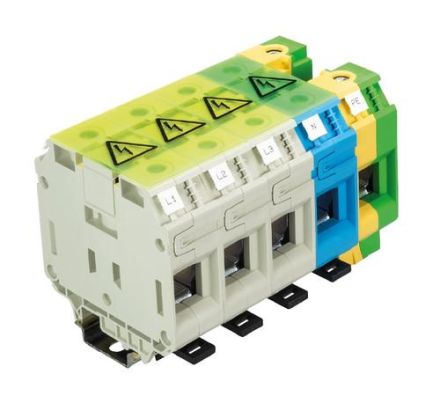

Terminal block feed-in set WKN 70 3D/N/SL/U/V0, with the following terminals: 3x grey, 1x blue, 1x green-yellow, including labels and covers, type: WKN 70 3D/N/SL/U/V0

Property	Value
QS fine-stranded:	10 to 70 mm²
QS stranded:	16 to 95 mm²
Rated voltage:	1000 V
Levels:	1
Terminal points per level:	2
Rated current In:	179 A
Operating temperature:	-40 to 55 °C
Connection:	Screw connection
Design of electrical connection 2:	Screw connection
Mounting type:	Top hat/G rail TH35/G32
Flammability class of the insulating material according to UL94:	V0
End plate required:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version Ex e:	yes
Depth:	76.8 mm
