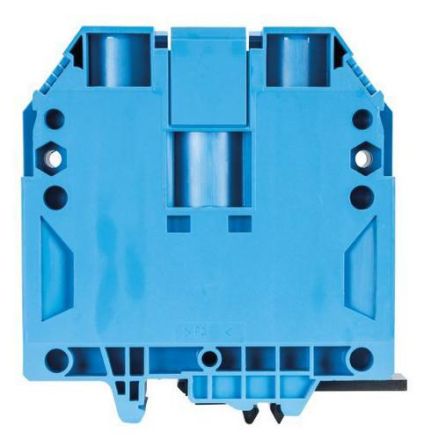

Wieland 57.597.0155.6 WKN150/ U BL / V0 feed-through terminal

In stock

SKU: 671766

Price on request

€25.85

€0

Overview

Through terminal with screw connection for mounting on TS 35 and TS 32, nominal cross section 150 mm, width 28 mm, color blue

Property	Value
QS fine-stranded:	35.00 to 150.00 mm²
QS multi-stranded:	35 to 185 mm²
Color:	blue
Rated voltage:	1000 V
Levels:	1.00
Terminal points per level:	2.00
Rated current In:	309.00 A
Operating temperature:	-40 to 55 °C
Connection:	Screw connection
Design of electrical connection 2:	Screw connection
Mounting type:	Top hat/G rail TH35/G32
Flammability class of the insulating material according to UL94:	V0
End plate required:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version Ex e:	yes
Depth:	96 mm
