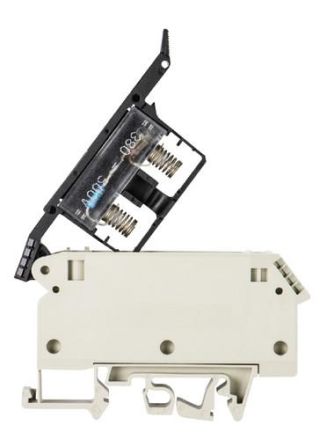

Wieland 57.904.5855.0 WK 4/THSI 5 GL 500U /V0 fuse terminal

Wieland 57.904.5855.0 WK 4/THSI 5 GL 500U /V0 fuse terminal

In stock

SKU: 673755

Price on request

€15.35

€0

Into a basketIn the basketGo

Overview

Fuse terminal with screw connection for mounting on TS 35 and TS 32, nominal cross section 4 mm, width 6 mm, color gray

Property	Value
QS single-wire:	0.50 to 6.00 mm²
QS fine-wire:	0.50 to 4.00 mm²
Operating temperature:	-40.00 to 55.00 °C
Rated current In:	6.30 A
Version of the Fuse insert:	G-fuse 5x30 mm
Design of the fuse holder:	pivoting
Type of display element for the defect indication:	glow lamp
Voltage type for the defect indication:	AC/DC
Rated voltage:	500.00 V
Design of electrical connection 1:	screw connection
Design of electrical connection 2:	screw connection
Number of Levels:	1.00
Mounting type:	Top-hat/G-rail TH35/G32
Color:	gray
End plate required:	no
Flammability class of the insulating material according to UL94:	V0
Material of the insulating body:	Thermoplastic
Depth:	77.2 mm

Characteristics

HABWK 4/THSI 5 GL 500U /V0

Manufacturer

HAN57.904.5855.0

GTIN4015573528345

Rated voltage500.00V

Rated current In6.30A

Operating temperatur-40.00 to 55.00 °C

Color

Mounting typeTop hat/G-rail TH35/G32

Depth77.2 mm
