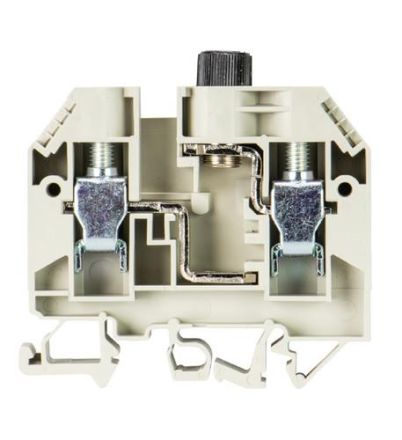

Wieland 57.910.5255.0 WK 10/SI U 5 X 30 /V0 fuse terminal

In stock

SKU: 673762

Price on request

€7.42

€0

Overview

Fuse terminal with screw connection for mounting on TS 35 and TS 32, nominal cross section 10 mm, width 12 mm, color gray

Property	Value
QS single-wire:	1.00 to 10.00 mm²
QS multi-wire:	16.00 mm²
QS fine-wire:	1.00 to 10.00 mm²
Operating temperature:	-40.00 to 55.00 °C
Rated current In:	10.00 A
Design of the fuse insert:	G-fuse 5x30 mm
Design of the fuse holder:	screwable
Rated voltage:	500.00 V
Design of electrical connection 1:	screw connection
Design of electrical connection 2:	screw connection
Number of levels:	1.00
Mounting type:	Top-hat/G-rail TH35/G32
Color:	gray
End plate required:	yes
Flammability class of the insulating material according to UL94:	V0
Material of the insulating body:	Thermoplastic
Depth:	65 mm
