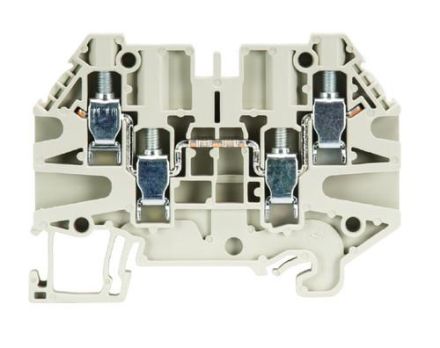

Wieland 58.504.5155.0 WT 4 D2/2 feed-through terminal

Wieland 58.504.5155.0 WT 4 D2/2 feed-through terminal

In stock

SKU: 671791

Price on request

€2.36

€0

Into a basketIn the basketGo

Overview

Duo feed-through terminal with 4 screw connections for mounting on TS 35, nominal cross-section 4 mm, width 6 mm, color gray

Property	Value
QS single-wire:	0.14 to 6.00 mm²
QS fine-wire:	0.14 to 6.00 mm²
Color:	gray
QS wire end ferrule:	0.50 to 4.00 mm²
Rated voltage:	500.00 V
Levels:	1.00
Terminal points per level:	4.00
Rated current In:	32.00 A
Operating temperature:	-25.00 to 70.00 °C
Connection:	Screw connection
Design of electrical connection 2:	Screw connection
Mounting type:	Top hat/G rail TH35/G32
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
Material of the insulating body:	Thermoplastic
Width:	6 mm
Height:	49 mm
Depth:	68 mm

Characteristics

HABWT 4 D2/2

Manufacturer

HAN58.504.5155.0

GTIN4049088164057

Rated voltage500.00V

Rated current In32.00A

Operating temperatur-25.00 to 70.00 °C

Width6 mm

Color

Height49 mm

Mounting typeTop hat/G-rail TH35/G32

Depth68 mm
