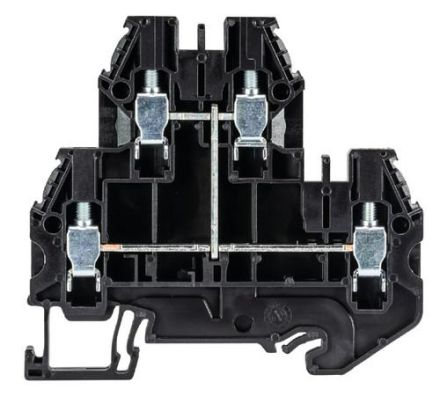

Wieland 58.504.6955.1 WT 4 EVB tier terminal

Wieland 58.504.6955.1 WT 4 EVB tier terminal

In stock

SKU: 671897

Price on request

€3.32

€0

Into a basketIn the basketGo

Overview

Tier terminal, vertically connected with screw connection for mounting on TS 35, nominal cross section 4 mm, width 6 mm, color black

Property	Value
QS single-wire:	0.14 to 6.00 mm²
QS fine-wire:	0.14 to 6.00 mm²
Color:	black
QS wire end ferrule:	0.50 to 4.00 mm²
Rated voltage:	800.00 V
Levels:	2.00
Terminal points per level:	2.00
Rated current In:	32.00 A
Operating temperature:	-25.00 to 70.00 °C
Connection:	Screw connection
Design of electrical connection 2:	Screw connection
Mounting type:	Top hat/G rail TH35/G32
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
Levels bridged internally:	yes
Material of the insulating body:	Thermoplastic
Depth:	73 mm

Characteristics

HABWT 4 EVB

Manufacturer

HAN58.504.6955.1

GTIN4049088164453

Rated voltage800.00V

Rated current In32.00A

Operating temperatur-25.00 to 70.00 °C

Color

Mounting typeTop hat/G-rail TH35/G32

Depth73 mm
