Wieland 58.506.0055.0 WT 6 feed-through terminal

In stock

SKU: 671793

Price on request

€1.77

€0

Overview

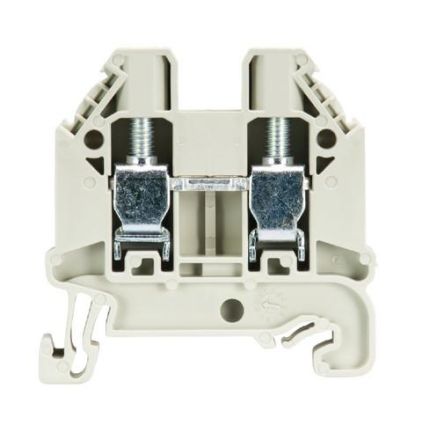

Feed-through terminal with screw connection for mounting on TS 35, nominal cross-section 6 mm, width 8 mm, color gray

Property	Value
QS single-wire:	0.20 to 10.00 mm²
QS fine-wire:	0.20 to 10.00 mm²
Color:	gray
QS wire end ferrule:	0.50 to 6.00 mm²
Rated voltage:	1000 V
Levels:	1.00
Terminal points per level:	2.00
Rated current In:	41.00 A
Operating temperature:	-25 to 70 °C
Connection:	Screw connection
Design of electrical connection 2:	Screw connection
Mounting type:	Top hat/G rail TH35/G32
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
Material of the insulating body:	Thermoplastic
Explosion-tested version Ex e:	yes
Width:	8 mm
Height:	48 mm
Depth:	48 mm
