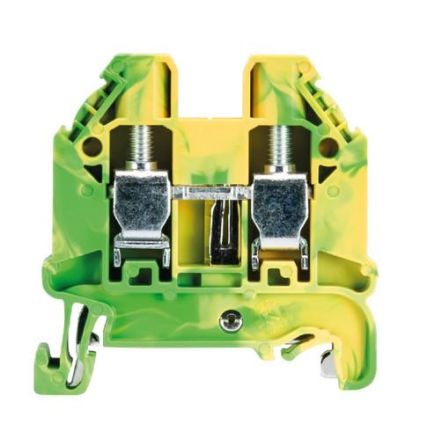

Wieland 58.506.9055.0 WT 6 PE protective conductor terminal

In stock

SKU: 673726

Price on request

€4.13

€0

Overview

Protective conductor terminal with screw connection for mounting on TS 35, nominal cross section 6 mm, width 8 mm, color green/yellow

Property	Value
Operating temperature:	-25.0 to 70.0 °C
QS single-wire:	0.2 to 10 mm²
Connectable conductor cross section, finely stranded without wire end ferrule:	0.2 to 10.0 mm²
QS wire end ferrule:	0.5 to 6 mm²
PEN function:	no
Connection:	screw connection
Design of electrical connection 2:	screw connection
Levels:	1.00
Terminal points per level:	2.00
Color:	green/yellow
Mounting type:	Top hat/G rail TH35/G32
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
Material of the insulating body:	Thermoplastic
Depth:	48 mm
