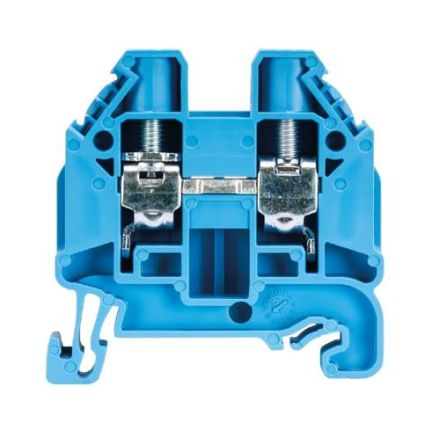

Wieland 58.510.0055.6 WT 10 BL feed-through terminal

Wieland 58.510.0055.6 WT 10 BL feed-through terminal

In stock

SKU: 671803

Price on request

€2.17

€0

Into a basketIn the basketGo

Overview

Feed-through terminal with screw connection for mounting on TS 35, nominal cross-section 10 mm, width 10 mm, color blue

Property	Value
QS single-wire:	0.50 to 16.00 mm²
QS fine-wire:	0.50 to 16.00 mm²
QS multi-wire:	16 mm²
Color:	blue
QS wire end ferrule:	0.50 to 10.00 mm²
Rated voltage:	1000 V
Levels:	1.00
Terminal points per level:	2.00
Rated current In:	57.00 A
Operating temperature:	-25 to 70 °C
Connection:	Screw connection
Design of electrical connection 2:	Screw connection
Mounting type:	Top hat/G rail TH35/G32
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
Material of the insulating body:	Thermoplastic
Explosion-tested version Ex e:	yes
Depth:	48 mm

Characteristics

HABWT 10 BL

Manufacturer

HAN58.510.0055.6

GTIN4049088165115

Rated voltage1000V

Rated current In57.00 A

Operating temperatur-25 to 70 °C

Color

Mounting typeTop hat/G-rail TH35/G32

Depth48 mm
